Pipe To Use

Pipe

Material                            Acrylonitrile Butadiene Styrene (ABS)

Colour                              Red

Operating                         -40 C to 70 C

Fan Speeds for pipe systems

Holes

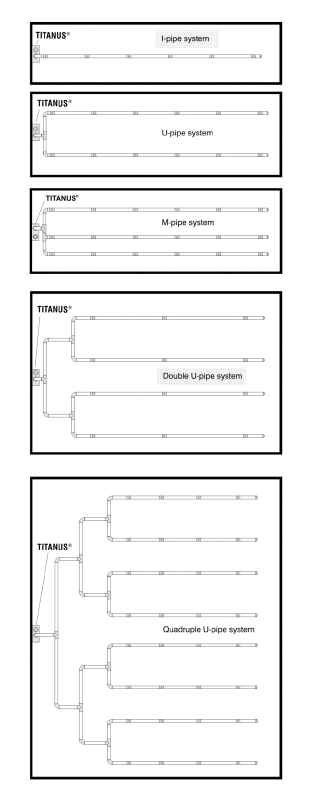

Up to 7 holes 1 run on M Design

Up to 10 holes 1 run on U Design

Up to 10 holes 1 run on I Design

Pipes and Holes

5m from wall, 10m between holes. Drill 10mm holes

Acceleration holes is always 7mm

Anything over 4 holes  go to acceleration design

There should be a smoke response from any hole within 2 minutes

Coupler

Socket Union - 1 per Unit

Clips - Every 1.2m 2 per pipe

Cement - 1 bottle Every 170 connections

Test Point - Place a test on the end of each run instead of end cap

Pipe Shears - Use pipe shears to cut pipe

Hole Reducers – Operating Temperature -20 Deg C to +60 Deg C

Marking Tape for stickers – Page 98 Catalogue

Hole Reducer Sticker – Page 99 Catalogue

Freezer Hole Reducers for Freezer Conditions – Operating Temperature -40 Deg C to +65 Deg C

Pipe Reducer clip – Page 100 Catalogue

Pipe Reducer Insert – Page 101 Catalogue
