The standard setting of the fan voltage is 6.9v.

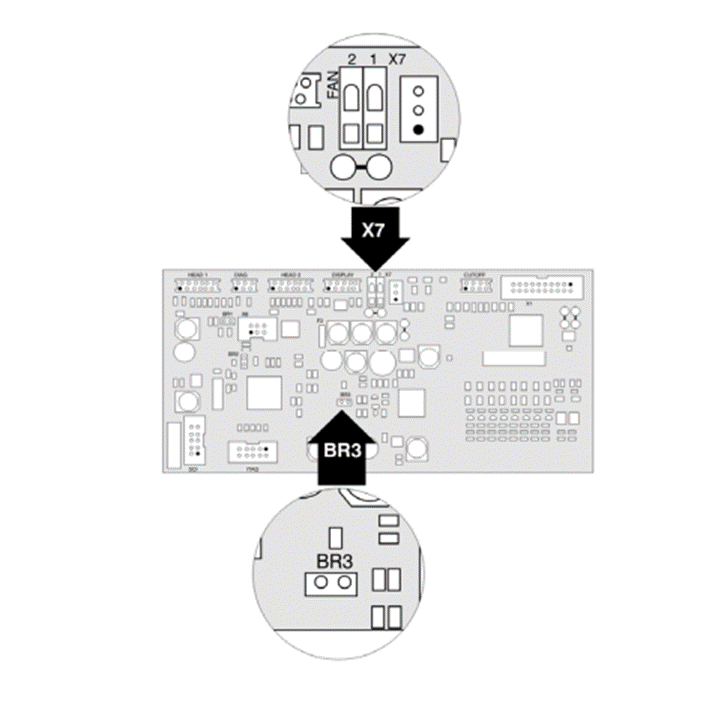

The voltage can be switched from 6.9v to 9v by removing BR3 in order to increase the transport speed in the pipe system and thus to guarantee a quicker detection in case of greater pipe lengths.

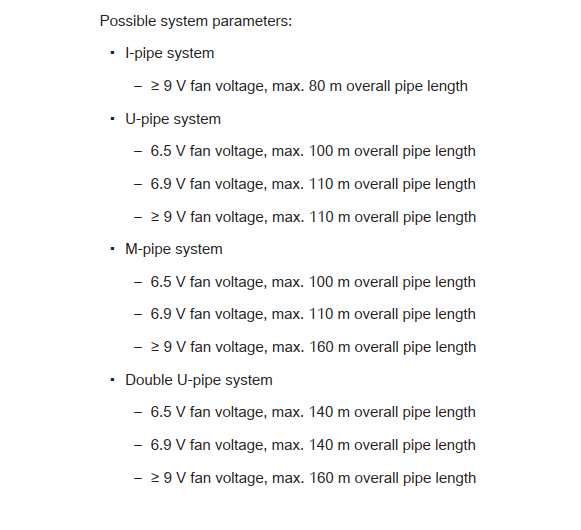

Fan Speeds for pipe systems
