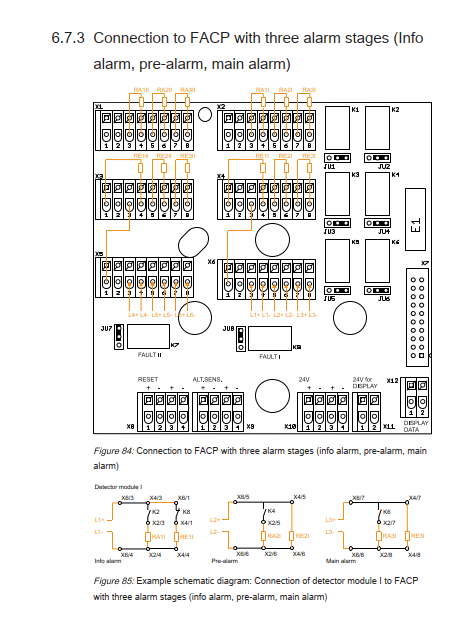

Attached is the TopSense manual, this has 3 alarm levels but an additional Bar Graph display. Electrical connections are from page 129, showing typical connections picking up 3 alarm out puts and fault but also further information if using reset board.
NB. if they want 3 alarms outputs plus fault and a Bar Graph display then they have to go to above and attached manual for top sense.
If it’s a Pro-Sense the TP5 can give 3 alarm levels but has no bar graph display.
